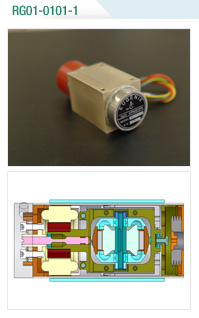

RG01 (AC in and AC out): A miniature rate gyro with an infinite resolution pickoff.
This is a one inch gyro that requires AC voltage input and has an AC voltage output. The output is provided by a microsyn which is basically a transformer with a moveable iron core. This gyro can be offered in many different input voltages from 14 VAC, 400 Hz and up. This gyro has been used on various military vehicles such as battle tanks and missiles with endless possibilities of other applications.

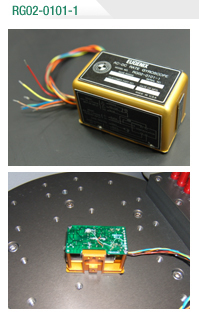

RG02 (AC in and DC out or DC in and DC out)
Packaged combinations using the AC in and AC out miniature gyro can be built with electronic circuits in compact designs that provide the user with a gyro that accepts unregulated power input. These packages provide outputs that are compatible with the user’s control circuits. Packages may be ordered with any combination of input and output characteristics as required by the user’s applications.
Rate range : 600 deg/sec
Natural Frequency : 31 Hz Min.
Threshold : 0.01 deg/sec

Scale Factor : 100 mVDC/deg/sec 2.5%
Linearity : 0.3% of F.S. to ½ Range; 2.0% of F.S. ½ to Full Range
Zero Offset (Null) : 30 mV Rms Max.
Phase Shift : 8 deg MAX
Phase Shift : 8 deg MAX
Pickoff (Microsyn) : 26 VAC RMS 5%, 400 Hz, 1PH
Run-up Time : 25 sec Max to 75% of Scale Factor

Temperature, Operating : to
Service Life : 1000 Hours MIN
Rate range : 200 deg/sec
Natural Frequency : 60 Hz Min.
Threshold : 0.01 deg/sec

Scale Factor : 19 MVDC/deg/sec
Noise : 0.3% of F.S. 0 to 100 Hz
Nonlinearity : 0.3% of F.S. to ½ Range; 2.0% of F.S. ½ to Full Range
Zero Offset : 2.0% of F.S. Max.
Zero Offset Stability : 0.015 deg/sec
Hysteresis : 0.15% of Full Scale

Motor : 26 VAC RMS 5%, 400 Hz, 2PH
Pickoff (Microsyn) : 26 VAC RMS 5%, 400 Hz, 1PH
Run-up Time : 3 sec Max at 52 VAC RMS 400 Hz

Temperature, Operating : to
Shock : 500G 0.40MS, Half Sine
Vibration : 30G RMS, 20-20KHz
